Hydroformed cooktops

Deborah Line: gas and electric elements that can be combined for custom configurations

Compex makes its experience available for the production of stainless-steel cooktops for the professional kitchen industry.



The cooktops are available in 600, 700 and 900 mm depths and are made of AISI 304 stainless steel, with thicknesses from 1 to 1.5 mm and a Scotch-Brite finish. Production is carried out using advanced technologies to ensure maximum precision.

The cooktops are supplied with different technical solutions in terms of overall dimensions, technical cut-outs and possible perimeter trimming.

Download documentation

By simply logging in, you can download all the documentation you need from our archive:

Product data sheet General catalog Assembly instructions IP Rating and declarations of conformity

DEBORAH 600 Top for 2 sealed gas burners

DEBORAH 700 Top for 2 round electric hot plates

DEBORAH 700 Drip pan for 2 open gas burners

DEBORAH 900 “ECO” Top for 4 sealed gas burners

DEBORAH 900 Top for 4 round electric hot plates

DEBORAH 600 Top for 2 sealed gas burners

DEBORAH 700 Top for 2 round electric hot plates

DEBORAH 700 Drip pan for 2 open gas burners

DEBORAH 900 “ECO” Top for 4 sealed gas burners

DEBORAH 900 Top for 4 round electric hot plates

Deborah 600 includes 1- or 2-module configurations for: sealed gas burners and round electric hot plates, with variants for different hot-plate combinations

At a glance

Recess: 275 × 515 mm
1- or 2-module configurations
Gas: sealed burners, 2 or 4 burners
Electric: round hot plates (2 or 4), with small versions and large + small combinations

SEALED GAS BURNERS

LAYOUT CODE DESCRIPTION
Layout I6186101 I6186101 Top for 2 sealed gas burners, 1 module
Layout I6286101 I6286101 Top for 4 sealed gas burners, 2 modules

ROUND ELECTRIC HOT PLATES

LAYOUT CODE DESCRIPTION
Layout I6183101 I6183101 Top for 2 round (small) electric hot plates, 1 module
Layout I6283101 I6283101 Top for 4 round (small) electric hot plates, 2 modules
Layout I6183102 I6183102 Top for 2 round (large + small) electric hot plates, 1 module
Layout I6283102 I6283102 Top for 4 round (large + 3 small) electric hot plates, 2 modules
Deborah 700 includes 1 / 2 / 3-module configurations for: sealed gas burners, “ECO” sealed burners, open gas burners, and round or square electric hot plates, as well as the drip pan for open burners

At a glance

Recess: 330.4 × 600.4 mm
1-, 2- or 3-module configurations
Gas: open, sealed and “ECO” sealed burners (2, 4 or 6 burners)
Electric: round or square hot plates (2, 4 or 6 hot plates)
Accessory: drip pan for open burners (2 burners)

OPEN GAS BURNERS

LAYOUT CODE DESCRIPTION
Layout I7181101 I7181101 Top for 2 open gas burners, 1 module
Layout I7281101 I7281101 Top for 4 open gas burners, 2 modules

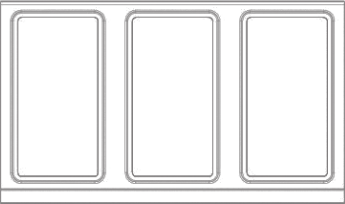

Layout I7381101 I7381101 Top for 6 open gas burners, 3 modules

DRIP PAN FOR OPEN BURNERS

LAYOUT CODE DESCRIPTION
Layout B7171101 B7171101 Drip pan, 2 open gas burners (large + medium)
Layout B7171102 B7171102 Drip pan, 2 open gas burners (large + large)
Layout B7171103 B7171103 Drip pan, 2 open gas burners (large + small)
Layout B7171104 B7171104 Drip pan, 2 open gas burners (medium + medium)
Layout B7171105 B7171105 Drip pan, 2 open gas burners (medium + small)
Layout B7171106 B7171106 Drip pan, 2 open gas burners (small + small)
Layout B7171107 B7171107 Drip pan, 2 open gas burners (medium + large)
Layout B7171108 B7171108 Drip pan, 2 open gas burners (small + large)
Layout B7171109 B7171109 Drip pan, 2 open gas burners (small + medium)

SEALED GAS BURNERS

LAYOUT CODE DESCRIPTION
Layout I7182101 I7182101 Top for 2 sealed gas burners, 1 module
Layout I7282101 I7282101 Top for 4 sealed gas burners, 2 modules
Layout I7382101 I7382101 Top for 6 sealed gas burners, 3 modules

“ECO” SEALED GAS BURNERS

LAYOUT CODE DESCRIPTION
Layout I7186101 I7186101 Top for 2 “ECO” sealed gas burners, 1 module
Layout I7286101 I7286101 Top for 4 “ECO” sealed gas burners, 2 modules
Layout I7386101 I7386101 Top for 6 “ECO” sealed gas burners, 3 modules

ROUND ELECTRIC HOT PLATES

LAYOUT CODE DESCRIPTION
Layout I7183101 I7183101 Top for 2 round electric hot plates, 1 module
Layout I7283101 I7283101 Top for 4 round electric hot plates, 2 modules

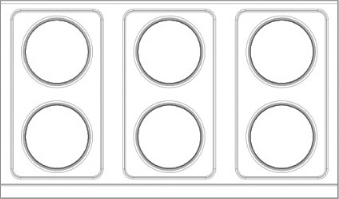

Layout I7383101 I7383101 Top for 6 round electric hot plates, 3 modules

SQUARE ELECTRIC HOT PLATES

LAYOUT CODE DESCRIPTION
Layout I7184101 I7184101 Top for 2 square electric hot plates, 1 module
Layout I7284101 I7284101 Top for 4 square electric hot plates, 2 modules

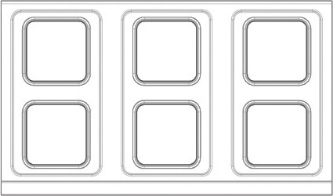

Layout I7384101 I7384101 Top for 6 square electric hot plates, 3 modules
Deborah 900 includes 1 / 2 / 3-module configurations for gas solutions (open, sealed and “ECO” sealed), electric solutions (round and square hot plates) and a drip pan for open burners

At a glance

Recess: 351.2 × 712.2 mm
1-, 2- or 3-module configurations
Gas: open, sealed and “ECO” sealed burners (2, 4 or 6 burners)
Electric: round or square hot plates (2 or 4 hot plates)
Accessory: drip pan for open burners (2 burners)

OPEN GAS BURNERS

LAYOUT CODE DESCRIPTION
Layout I9181101 I9181101 Top for 2 open gas burners, 1 module
Layout I9281101 I9281101 Top for 4 open gas burners, 2 modules
Layout I9381101 I9381101 Top for 6 open gas burners, 3 modules

DRIP PAN FOR OPEN BURNERS

LAYOUT CODE DESCRIPTION
Layout B9171101 B9171101 Drip pan, 2 open gas burners (large + medium)
Layout B9171102 B9171102 Drip pan, 2 open gas burners (large + large)
Layout B9171103 B9171103 Drip pan, 2 open gas burners (medium + medium)
Layout B9171104 B9171104 Drip pan, 2 open gas burners (medium + large)

SEALED GAS BURNERS

LAYOUT CODE DESCRIPTION
Layout I9182101 I9182101 Top for 2 sealed gas burners, 1 module
Layout I9282101 I9282101 Top for 4 sealed gas burners, 2 modules
Layout I9382101 I9382101 Top for 6 sealed gas burners, 3 modules

“ECO” SEALED GAS BURNERS

LAYOUT CODE DESCRIPTION
Layout I9186101 I9186101 Top for 2 “ECO” sealed gas burners, 1 module
Layout I9286101 I9286101 Top for 4 “ECO” sealed gas burners, 2 modules
Layout I9386101 I9386101 Top for 6 “ECO” sealed gas burners, 3 modules

ROUND ELECTRIC HOT PLATES

LAYOUT CODE DESCRIPTION
Layout I9183101 I9183101 Top for 2 round electric hot plates, 1 module
Layout I9283101 I9283101 Top for 4 round electric hot plates, 2 modules

SQUARE ELECTRIC HOT PLATES

LAYOUT CODE DESCRIPTION
Layout I9184101 I9184101 Top for 2 square electric hot plates, 1 module
Layout I9284101 I9284101 Top for 4 square electric hot plates, 2 modules
